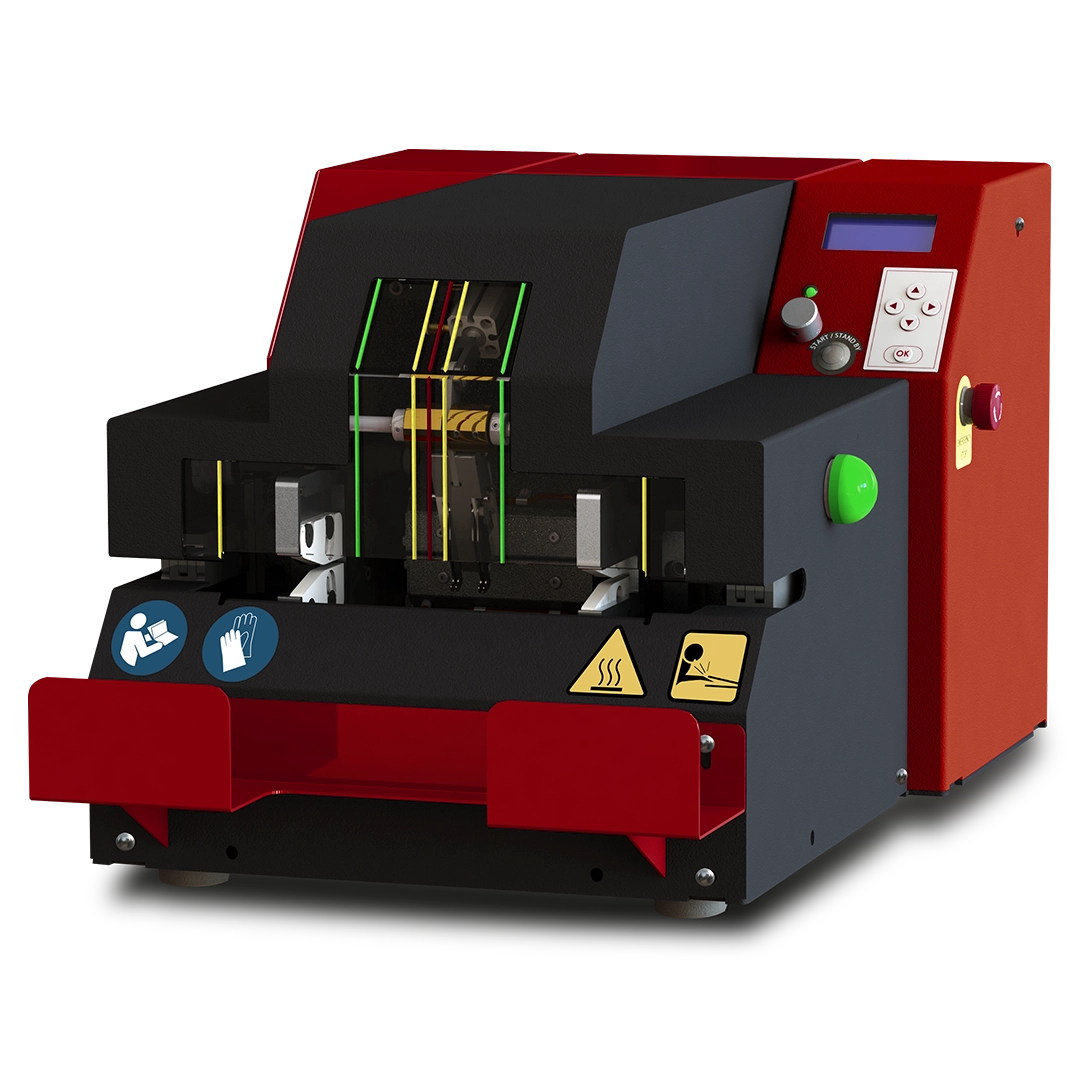

RCM
The RCM is a heat shrink tube processing machine with an integrated centering system, based on infrared resistance heating. This feature ensures that each tube is correctly aligned with the splice (welded area), preventing misalignment and increasing process accuracy.
Designed for workbench use, it processes one product at a time and includes communication with ultrasonic welding machines, offering multiple operating modes.
Datasheet
Built-in centering system that ensures that the shrink tube is always in the middle of the splice
Optional end-splice tool with cooling that does not need to be disassembled when processing standard splices.
Possibility of working with centering system or in normal mode
The pre-programming of references can be done manually or using a PC with STCS-RCT software
metric
imperial
RCM
REFERENCE
RCM
14-01-0011
14-01-0011
WORKING TEMPERATURE
RCM
300 - 550 ºC
572 - 1022 ºF
SHRINKING TIME
RCM
1 - 99 s
1 - 99 s
MEASUREMENTS
RCM
Width: 400 mm
Length: 623 mm
Height: 330 mm
Length: 623 mm
Height: 330 mm
Width: 15.7 in
Length: 24.5 in
Height: 13 in
Length: 24.5 in
Height: 13 in
WEIGHT
RCM
37.5 kg
82.7 lbs
POWER SUPPLY
RCM
230 [V] @ 50Hz
230 [V] @ 50Hz
CONSUMPTION
RCM
250 [mA] a 3 [A] (Max.700W)
250 [mA] a 3 [A] (Max.700W)
SHRINKING CHAMBER
RCM
77; Ø32 mm
3; Ø1.3 in
MIN-MAX TUBE Ø
RCM
0 - 20 mm
0 - 0.8 in
MIN-MAX TUBE LENGTH
RCM
0 - 75 mm
0 - 3 in
MIN-MAX CABLE Ø
RCM
0 - 20 mm
0 - 0.8 in
MIN-MAX CABLE LENGTH
RCM
360 - 5000 mm
14.2 - 197 in
End Splice Tool
Cooling System
