CS14

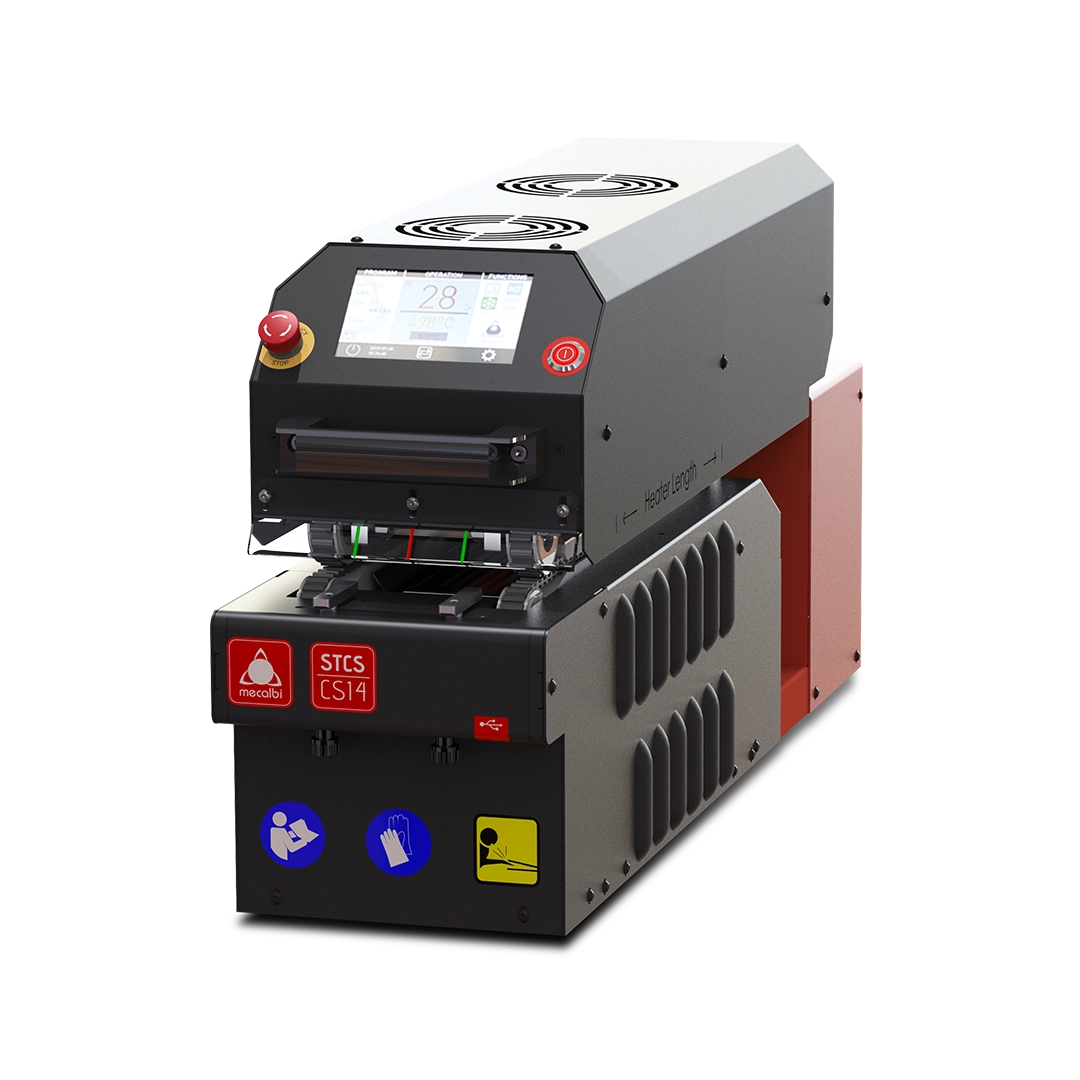

The CS14 is a compact shrinking system based on a belt-driven mechanism with infrared resistors.
Lightweight and efficient, it is ideal for high-volume production, with an operator-adjustable cycle rate.
It can be equipped with the Integrated Automatic Centering System (ISAC14), which ensures correct positioning and length of the heat-shrink tubes.
Datasheet
The equipment can be provided with cooling, cable counter, auxiliary centering system, custom-made workbench and others
Communication features like Ethernet, USB, Wi-Fi, etc.
Compact and lightweight machine for space optimization
Optional ISAC14 (Integrated System Automatic Centering) for heat shrink tubing position assurance
metric
imperial
CS14
with ISAC14
REFERENCE
CS14
14-01-0025
14-01-0025
with ISAC14
27-18-0002
27-18-0002
WORKING TEMPERATURE
CS14
300 - 600 ºC
572 - 1112 ºF
SHRINKING TIME
CS14
3 - 100 s
3 - 100 s
MEASUREMENTS
CS14
Width: 221 mm
Length: 842mm
Height: 398 mm
Length: 842mm
Height: 398 mm
Width: 8.7 in
Length: 33.1 in
Height: 15.7 in
Length: 33.1 in
Height: 15.7 in
with ISAC14
Width: 341 mm
Length: 1046mm
Height: 398 mm
Length: 1046mm
Height: 398 mm
Width: 13.4 in
Length: 41.1 in
Height: 15.7 in
Length: 41.1 in
Height: 15.7 in
WEIGHT
CS14
35 kg
77.2 lbs
with ISAC14
55 kg
121 lbs
POWER SUPPLY
CS14
230 [V] @ 50Hz
230 [V] @ 50Hz
CONSUMPTION
CS14
500 [mA] a 9.5 [A] (Max.2200W)
500 [mA] a 9.5 [A] (Max.2200W)
SHRINKING CHAMBER
CS14
Width: 220 mm
Length: 70 mm
Height: 30 mm
Length: 70 mm
Height: 30 mm
Width: 8.7 in
Length: 2.8 in
Height: 1.2 in
Length: 2.8 in
Height: 1.2 in
MIN-MAX TUBE Ø
CS14
0 - 25 mm
0 - 1 in
MIN-MAX TUBE LENGTH
CS14
0 - 65 mm
0 - 2.6 in
with ISAC14
35 - 65 mm
1.4 - 2.6 in
MIN-MAX CABLE Ø
CS14
0 - 12 mm
0 - 0.5 in
with ISAC14
0 - 10 mm
0 - 0.4 in
MIN-MAX CABLE LENGTH
CS14
150 - 5000 mm
5.9 - 197 in
with ISAC14
300 - 5000 mm
11.8 - 197 in
